| Installation Recommendations Verify style, pattern, and color prior to installation. It is imperative that this be accomplished before any cuts are made to avoid unnecessary claims. We use a variety of tufting technologies; however, all our products share a common characteristic with regard to rows of face fiber. All our products have tufting rows that will be straight and not staggered. We therefore require all seams to be trimmed. No pattern carpet can be matched unless this row cutting requirement is strictly adhered to on all seams. Our procedure is simple and effective if the following points are observed:
The Carpet and Rug Institute Standard 104-1996 requires the proper sealing of ALL seams on all installed carpet. It is required that all seams on glue down (CRI 104-8.5), double glue down (CRI-104-9) and stretch installations (CRI 104-11.6) be sealed using a good quality seaming adhesive. ON ALL GLUE DOWN SEAMS: A single bead of solvent or acrylic based seam sealer must be applied, the bead should be “tall” enough to “meet” the primary backing yarn bundles and secondary backing, but never contact the face fiber. Once the bead is applied to the first edge, the second edge should immediately be pressed against the first edge to provide an immediate transfer. Seam sealer will “flash off” and “skin over” quickly. (See also CRI 104-1996 8.3 and 9.4). Failure to seal seams will void the warranties. CRI 104 is endorsed by the Canadian Carpet Institute. PLAN YOUR WORK & WORK YOUR PLAN! In order to pattern match it is necessary to adhere to the following standards:

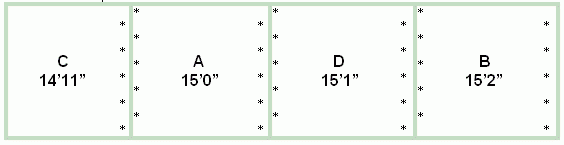

![]() Example: Drop A: 30 patterns measure 15’0” Drop B: 30 patterns measures 15’2” Drop C: 30 patterns measure 14’11” Drop D: 30 patterns measures 15’1” The proper judgment in this example is to place the drops as follows to diminish the pattern elongations: C: 14’11”, A: 15’0”, D: 15’1”, B: 15’2" Experience has shown that most carpets easily stretch 1.5%-2% with power stretchers. The deviation between Drop A and Drop C is only half of 1%, thereby making a match achievable.

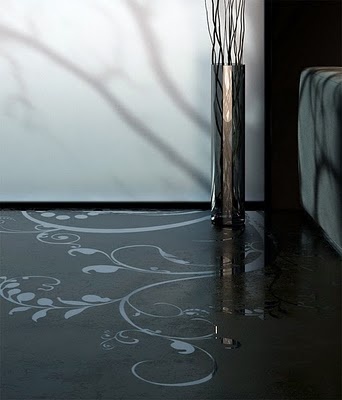

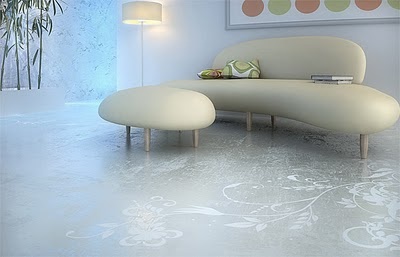

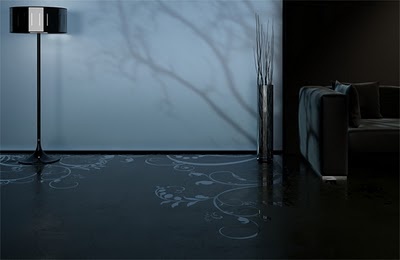

PLEASE REMEMBER: This carpet is synthetic and will not shrink to fit. You must plan your work so you can always stretch the short patterns into register with the long ones! (i.e. “D” stretches to match “B”, “A” stretches to match “D”, “C” stretches to match “A”) SEPT 19 2011- Hello check out these pictures of designed concrete flooring |
